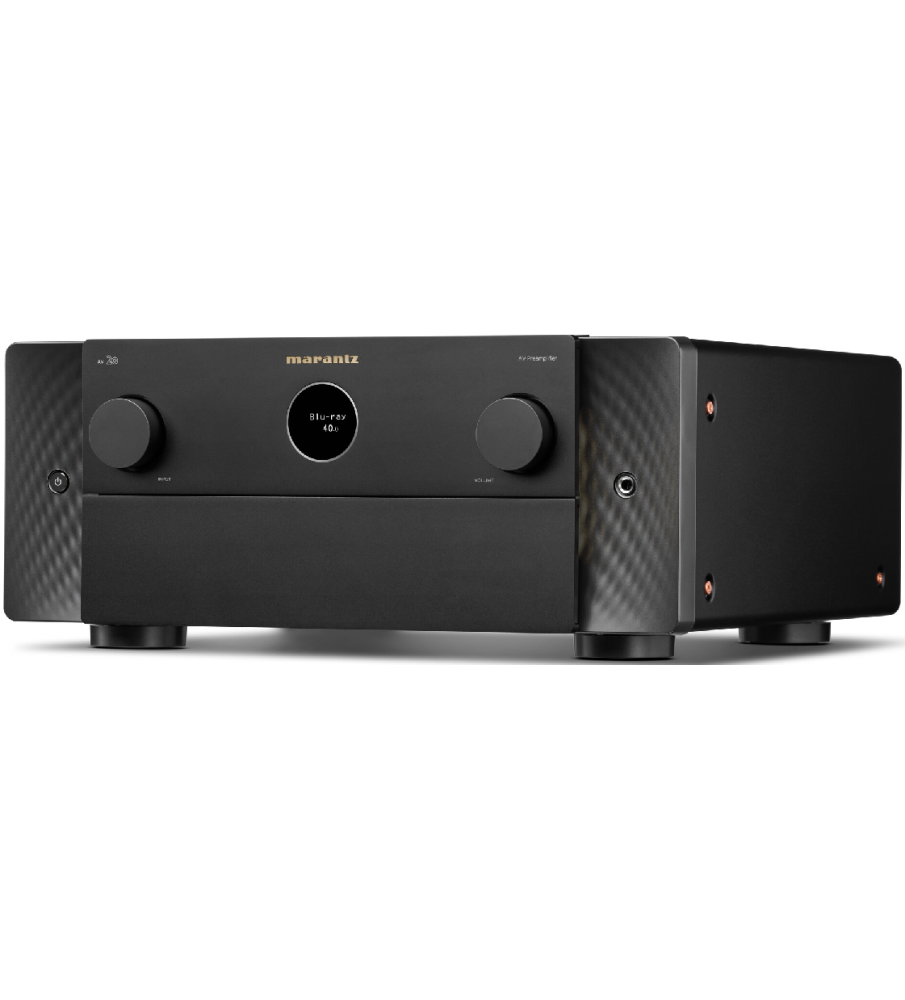

Marantz AV20 13.4 Channel Balanced AV Preamplifier - Black
AV 20 represents the highest measure of performance and capability for reference-level home theater systems. This reference 13.4 Channel Balanced AV Preamplifier features Marantz HDAM discrete circuitry, and boasts seven HDMI inputs, each of which is 8K UHD compatible.
When it comes to home theater, Marantz AV Separates bring your movies to life. AV 20 bears all the cinematic performance and feature-rich innovation we’re renowned for, expertly engineered with a timeless design.
Detailed and immersive sound transforms your home theatre
•13.4-channel output allows a variety of speaker layouts such as 7.4.6
•Decodes Dolby Atmos, DTS:X, IMAX Enhanced audio and AURO-3D
•Acoustic room tuning with Audyssey MultEQ XT32 and optional Dirac Live
•Seven HDMI inputs (all 8K) and three outputs for highest resolution video
•HEOS Built-in for online music streaming and wireless multi-room
•Sound Master tuned for warm, rich and detailed Marantz sound
•High-quality HD on-screen interface makes setup intuitive
•Balanced and RCA outputs for external power amplifiers
•Elegant design matches beautiful sound
•Optimized HDAM-SA3 for fast response and low distortion
Specifications:
DTS-HD, DTS:X, DTS:X Pro, DTS Virtual:X, DTS Neural:X (13ch)
Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
IMAX Enhanced
Auro 3D / 360 Reality Audio / MPEG H
Max Number of Processing (Pre-amp) Channels 13.4
Copper-Plated Chassis / Toroidial Power Transformer
Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM)
Pure Direct / Gold-Plated RCA Terminals
Clock Jitter Reducer
Dirac Live upgradability
Compressed Audio Enhancer: MDAX2
Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC
Audyssey MultEQ XT32
Wi-Fi / Bluetooth / Ethernet
HEOS Multi-Room and Streaming
Bluetooth Retransmit for Bluetooth Headphones
Apple HomePod
Lossy formats MP3, WMA, AAC
Lossless formats FLAC, FLAC HD 192/24, ALAC, ALAC 192/24, WAV, WAV 192/24
DSD Audio Streaming Yes (2.8/5.6MHz)
Gapless Playback FLAC, ALAC, WAV, DSD
TuneIn / AirPlay 2 / Spotify
Roon-Ready
Other Streaming Services* Amazon Music / TIDAL / Deezer / Napster / Soundcloud
Compatible with Remote App for Smartphones Marantz AVR Remote
Compatible with Remote App for Tablets Android / iOS / Amazon Kindle
Total HDMI Inputs 7 (rear)
HDCP2.3 Support
HDMI Outputs: Main / Zone 2 / 1
HDMI Scaling 1080P/4K to 8K
GUI Overlay on HDMI
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out 7 / 2 (up to 40Gbps)
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
Enhanced ARC
ALLM (Auto Low Latency Mode) Pass-Through for Gaming
Variable Refresh Rate / Quick Frame Transport
HDMI Pass-Though in Standby Mode
DSD Audio Capability
Auto LipSync
HDMI In / Out 7 / 3
Multi-Room Video Out: HDMI
Analogue In 6 (1x XLR)
Phono (MM) In
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: analog: 2
Multichannel Pre-Amp Out Yes (15.4 RCA, 15.4 XLR)
Subwoofer Out 4 (independent) RCA, XLR
Speaker A / B assignable pre out
Bi-amp drive assignable pre out
Front USB Input / USB Audio
USB Power Supply (Rear)
HEOS Multi-Room Integrated
HEOS Link Compatibility: IR/ IP
Multi-Room Zones
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue Yes (2 ch) / Yes (2 ch) / Yes / Yes
Zone Audio Output: Pre-Out
Zone HDMI Output from HDMI Source
IP Control / RS232 Control / Web Control / App Control
IR Flasher In / Marantz Remote Bus
DC Trigger Output 3
HDMI Diagnostics
Auto Speaker Setup by Microphone
Audyssey MultEQ XT32 Dirac Live (upgrade)
Front Display 2-Line FLD, Port Hole OLED
Graphic User Interface - GUI Modern HD GUI
Setup Assistant / Smart Select
Firmware Update by Network / USB
Variable Cross Over / Optimized Bass Redirection / Bass Sync
Auto Power Off / Sleep Timer
Metal Front Panel
System Remote Control RC051SR
Power Consumption 90watt
Standby Consumption 0.2 W
Maximum Dimensions
Antenna:Horizontal:(W x D x H) 442mm × 458mm × 191mm
Antenna:Vertical :(W x D x H) 442mm × 458mm × 254mm
W/o Antenna:(W x D x H) 442mm × 436mm × 191mm
Weight 15kgs
