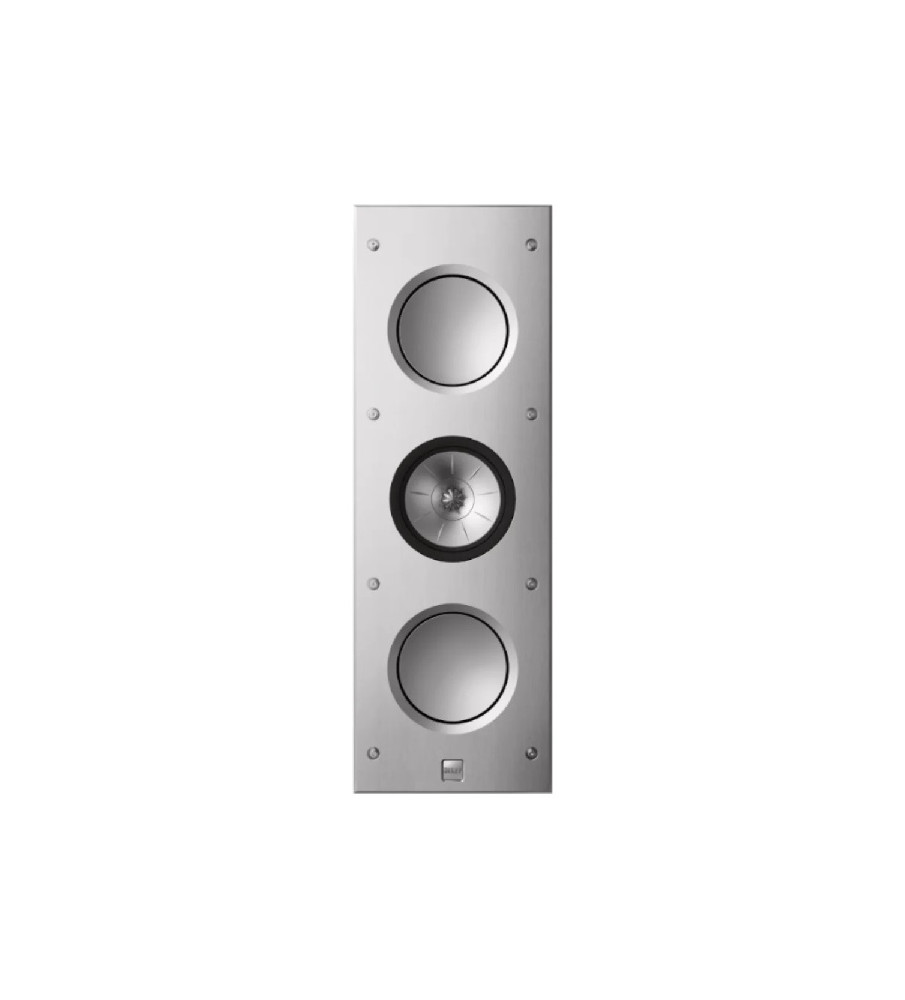

KEF Ci3160RLM-THX Architectural In Wall Speakers (each)
THX® Certified Ultra Speaker with MAT™
The Ci3160RLM-THX is an in-wall architectural speaker featuring the 12th generation Uni-Q driver array with KEF’s groundbreaking Metamaterial Absorption Technology (MAT™), refined to maximise its full potential and proudly carries the THX Certified Ultra designation. Together with two 6.5” hybrid aluminium bass drivers, it delivers the most dynamic audio experience for home theatres.
The 5.5 mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.
The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.
Available in Aluminium Silver, including tone matched Uni-Q and bass drivers.
Specifications:
Series R Series
Nominal Impedance 4Ω
Sensitivity (2.83V/1m) 89dB
Frequency Response (±6 dB) open-backed 43Hz - 28kHz
Frequency Range (-10 dB) 33Hz - 45kHz
Nominal Coverage (degrees) 150°
Crossover Frequency 640Hz, 2.6kHz
Drive Units LF:
2 x 160mm (6.5in.)
MF: 160mm (6.5in.) Uni-Q
HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology1
Recommended Amplifier Power 50 - 350 W
Recommended High-pass Filter (Hz) 35Hz - 80Hz
Product External Dimensions (H X W X D) 680 x 230 x 105.7mm (26.77 x 9.06 x 4.16in.)
Cut-out Dimensions (H X W) 660 x 209mm (25.98 x 8.23in.)
Net Weight 12 kg (26.4 lbs.)
Mounting Depth From Surface 99mm (3.9in.)
Optional Rough In Frame RIF3160L
Ideal Rear Volume (L) 60
Minimum Rear Volume (L) 30
Max SPL (dB) 110dB
Certification THX® Certified Ultra
Wall Thickness (Maximum) 40mm (1.58in.)
Wall Thickness (Minimum) 6mm (0.24in.)
