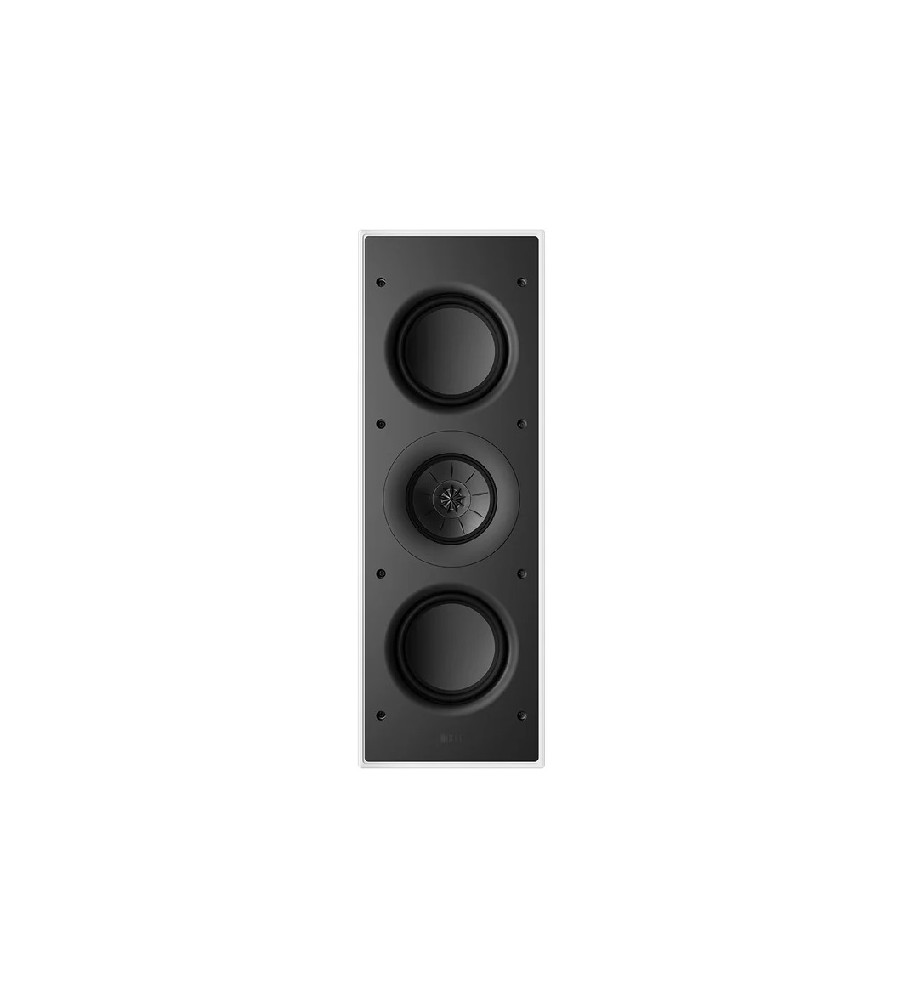

KEF Ci3120QLM-THX Architectural In Wall Speakers (each)
A versatile THX Certified Select In-Wall Speaker with MAT™
The Ci3120QLM-THX in-wall architectural speaker meets the growing demand for high-performance home theatre solutions in multipurpose rooms, where dedicated spaces are less common. Featuring a 12th generation Uni-Q driver array and our groundbreaking Metamaterial Absorption Technology (MAT), the Ci3120QLM-THX is THX Certified Select. It recreates high-impact cinema sound with best-in-class audio fidelity, making it ideal for medium-sized rooms.
Specifications:
Frequency Response Range 50Hz - 20kHz
Frequency Response Remark (±6dB) open-backed
Frequency Range 42Hz - 20kHz
Sensitivity 89dB
Nominal Impedance 4Ω
Nominal Coverage 150°
Wall Thickness (Minimum) 6mm (0.24in.)
Drive Units:
LF: 2 x 120mm (4.75 in.)
MF: 100mm (4 in.) Uni-Q
HF: 19mm (0.75 in.) vented aluminium dome with Metamaterial Absorption Technology1
Crossover Frequency 440Hz, 2.75kHz
Recommended Amplifier Power 25 - 250 W
Recommended High-Pass Filter (Hz) 35Hz-100Hz
Product External Dimensions (H x W x D) 536mm x 186mm x 96mm (21.1in. x 7.3in. x 3.8in.)
Cut-Out Dimensions (H x W) 513mm x 163mm (20.2in. x 6.4in.)
Mounting Depth From Surface 90mm (3.6")
Mounting Thickness:
Maximun: 36mm (1.42in.)
Minimum: 6mm (0.24in.)
Ideal Rear Volume (L) 40
Minimum Rear Volume (L) 20
Net Weight 6.2KG (13.7 lbs.)
Gross Weight:
Single box 8.3KG (18.3 lbs.)
Master box 17.7KG (39 lbs.)
Safety And Regulatory Compliance IP64
THX Certification THX Certified Select
