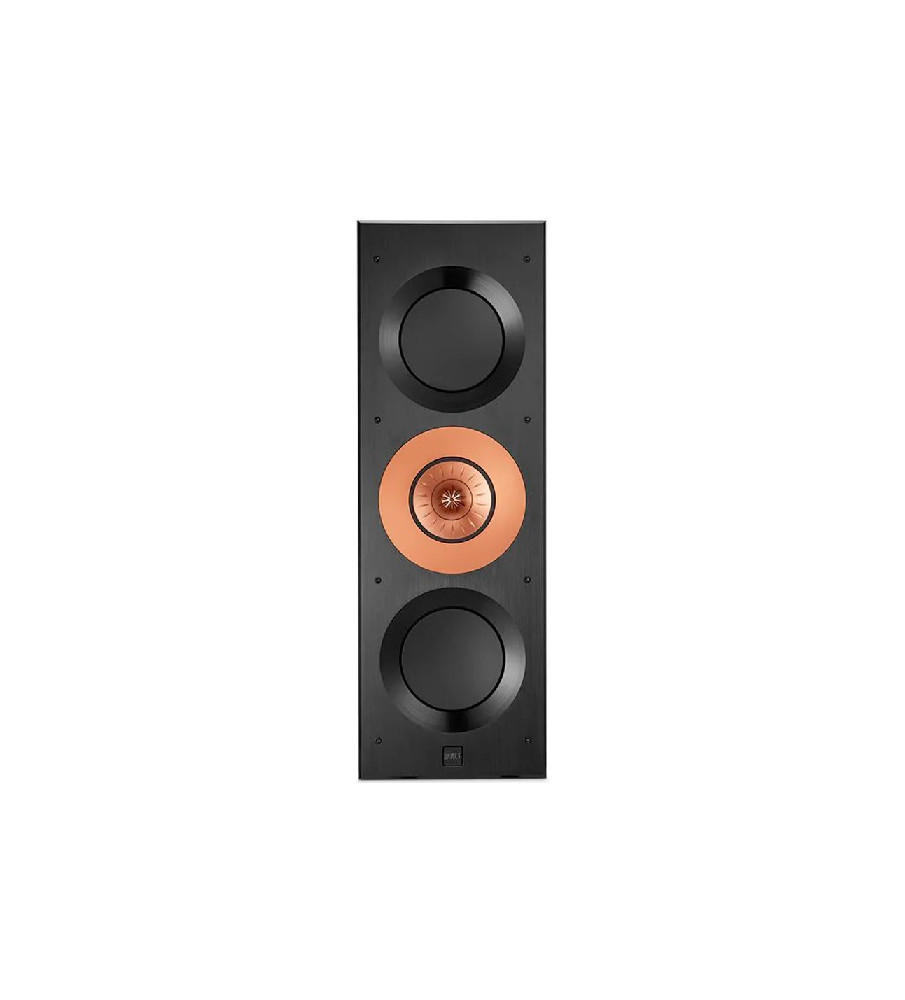

KEF Ci3160REFM Architectural In Wall Speakers (each)
*This product may take 12-14 weeks for delivery.
Ci3160REF-THX# utilises REFERENCE technologies to meet the standards of the legendary REFERENCE Series, as well as KEF’s Extreme Theatre and THX® Certified Ultra. It even comes with a REFERENCE Build Certificate signed by the craftsman who made it.
Ci3160REF-THX utilises the latest Uni-Q point source driver array. A 25mm vented aluminium dome tweeter sits at the exact acoustic centre of a 125mm mid-range driver. Together they act as a single source, flooding the listening space evenly with flawlessly natural sound.
Ci3160REF-THX’s bespoke 160mm bass driver is optimised for in-wall performance. With a massive vented magnet assembly and a large aluminium wire voice coil driving an exceptionally light, stiff and strong alloy cone, the dynamics and power handling are exceptional.
Ci3160REF-THX’s crossover combines the science of computer-modelling with the rigours of exhaustive auditioning and refinement of each high-grade component. Only components with the lowest distortion and the smoothest response make the grade for this exceptional loudspeaker. #For optimised performance, THX recommends using the Ci3160REF-THX without grille or fabric grille.
Specifications:
Nominal Impedance 4 Ohms
Sensitivity 90dB (2.83V/ 1m)
Frequency Response (±6DB) Open-backed 40Hz - 28kHz (±6dB)
Frequency Range (-10DB) 32Hz-30kHz
Nominal Coverage (Degrees) 115
Crossover Frequencies 350Hz, 2.7kHz
Drive Units:
LF: 2 x 160mm (6.5 in.)
MF: 125mm (5.25 in.) Uni-Q
HF: 25mm (1 in.)
Recommended Amplifier Power 40 - 350W
Recommended High-pass Filter (HZ) 40Hz
Product External Dimension (H X W X D) 680 x 230 x 105.7 mm (26.77 x 9.06 x 4.16 in.)
Cut-out Dimensions (H X W) 660 x 209 mm (25.98 x 8.23 in.)
Mounting Thickness (Maximum) 40mm
Mounting Thickness (Minimum) 6mm
Mounting Depth from Surface 99mm (3.9 in.)
Optional Rough In Frame RIF3160L
Ideal Rear Volume (L) 60
Minimum Rear Volume (L) 30
Max SPL (dB) 110
Certification THX Ultra
Net Weight 13.4Kg (29.54Ibs.)
