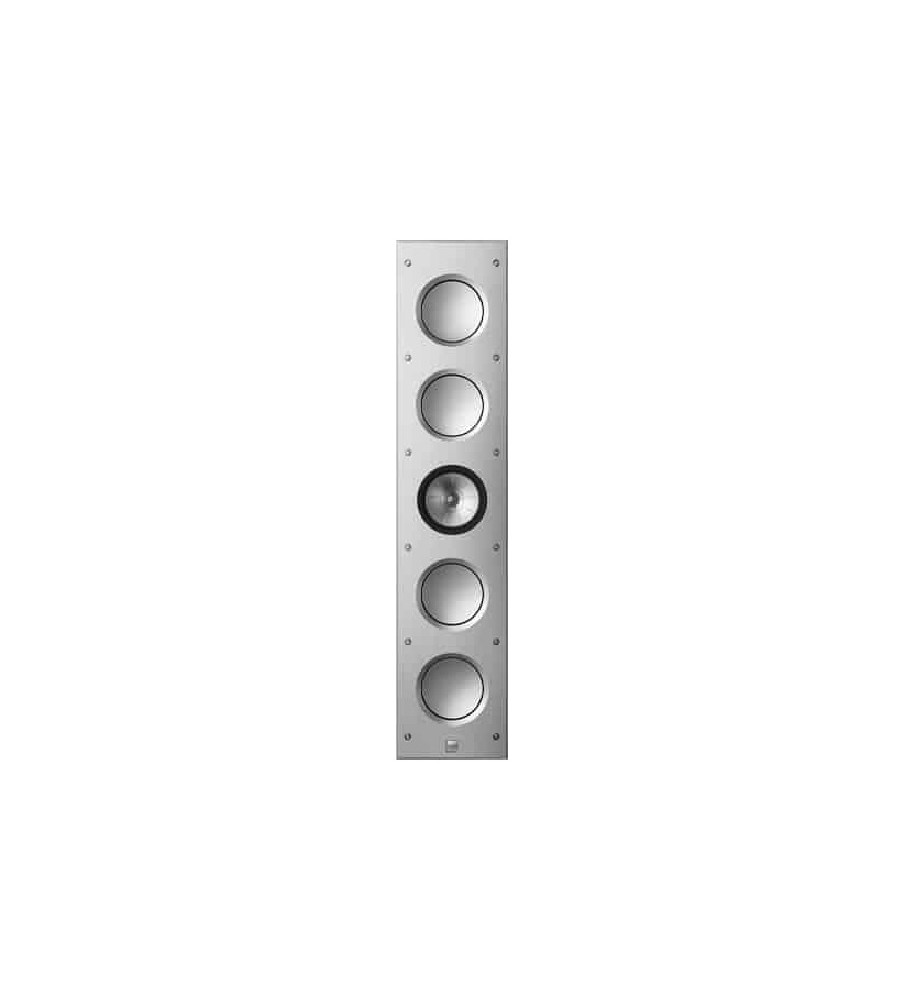

KEF Ci5160RLM-THX Architectural In Wall Speakers (each)
Ultra-high performance architectural speaker with MAT™
The Ci5160RLM-THX is an in-wall architectural speaker featuring the 12th generation Uni-Q driver array with KEF’s groundbreaking Metamaterial Absorption Technology (MAT™), refined to maximise its full potential and proudly carries the THX Certified Ultra designation. Together with four 6.5” hybrid aluminium bass drivers, it delivers the most dynamic audio experience for home theatres.
The 5.5 mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.
The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.
Available in Aluminium Silver, including tone matched Uni-Q and bass drivers.
Ci5160RLM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.
Specifications:
Nominal Impedance 4Ω
Sensitivity (2.83V/1m) 89dB
Frequency Response (±6 dB) open-backed 40 - 28kHz
Frequency Range (-10 dB) 32 - 45kHz
Nominal Coverage (degrees) 150°
Crossover Frequency 640Hz, 2.6kHz
Drive Units:
LF: 4 x 160mm (6.5in.)
MF: 160mm (6.5in.) Uni-Q
HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology1
Recommended Amplifier Power 50 - 350 W
Recommended High-pass Filter (Hz) 35Hz - 80Hz
Product External Dimensions (H X W X D) 1070 x 230 x 105.7mm (42.13 x 9.06 x 4.16in.)
Cut-out Dimensions (H X W) 1052 x 209mm (41.42 x 8.23in.)
Net Weight 18.7kg (41.1lbs.)
Mounting Depth From Surface 99mm (3.9in.)
Optional Rough In Frame RIF5160L
Max SPL (dB) 110dB
Certification THX® Certified Ultra
Wall Thickness (Maximum) 40mm (1.58in.)
Wall Thickness (Minimum) 6mm (0.24in.)
