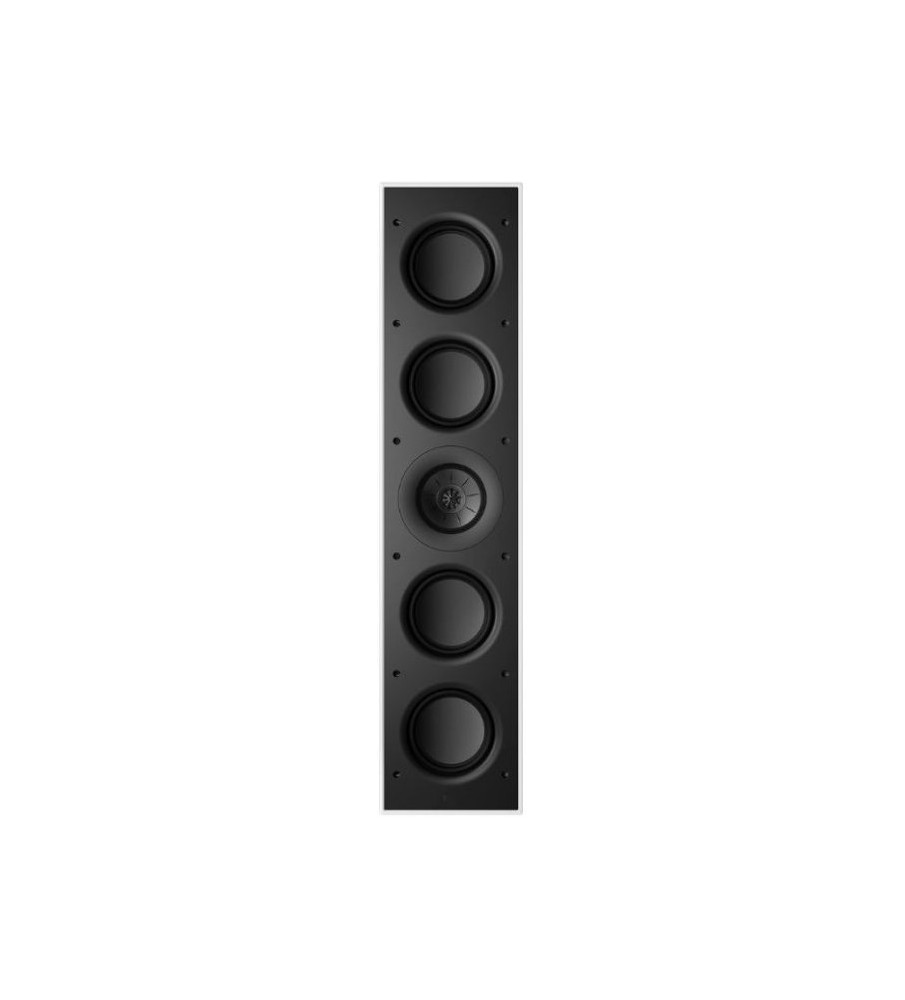

KEF Ci5120QLM-THX Architectural In Wall Speakers (each)
A versatile THX Certified Ultra In-Wall Speaker with MAT™
The Ci5120QLM-THX in-wall architectural speaker meets the growing demand for high-performance home theatre solutions in multipurpose rooms, where dedicated spaces are less common. Featuring a 12th generation Uni-Q driver array and our groundbreaking Metamaterial Absorption Technology (MAT), the Ci5120QLM-THX is THX Certified Ultra. It recreates high-impact cinema sound with best-in-class audio fidelity, making it ideal for large-sized rooms.
Specifications:
Series Q Series
Frequency Response Range 45Hz - 20kHz
Frequency Response Remark (±6dB) open-backed
Frequency Range 38Hz - 20kHz
Sensitivity 89dB
Nominal Impedance 4Ω
Nominal Coverage 150°
Maximum SPL 105dB
Drive Units LF:
4 x 120mm (4.75 in.)
MF: 100mm (4 in.) Uni-Q
HF: 19mm (0.75 in.) vented aluminium dome with Metamaterial Absorption Technology1
Crossover Frequency 440Hz, 2.75kHz
Recommended Amplifier Power 25 - 250 W
Recommended High-Pass Filter (Hz) 35Hz-100Hz
Product External Dimensions (H x W x D) 818mm x 186mm x 96mm (32.2in. x 7.3in. x 3.8in.)
Cut-Out Dimensions (H x W) 795mm x 163mm (31.3in. x 6.4in.)
Mounting Depth From Surface 90mm (3.6")
Mounting Thickness
Maximun: 36mm (1.42in.)
Minimum: 6mm (0.24in.)
Ideal Rear Volume (L) 70
Minimum Rear Volume (L) 35
Net Weight 9.7KG (21.4 lbs.)
Gross Weight Single box 12.8KG (28.2 lbs.) Master box 27KG (59.5 lbs.)
THX Certification THX® Certified Ultra
